Mild Steel - Rectangular Box Section
Mild Steel Rectangular Box Section is available in 7.5 metres lengths (hot rolled steel – Grade S275JR)
or in 6 metres lengths (cold formed ERW steel - Grade BS6323)
Please see below tables.

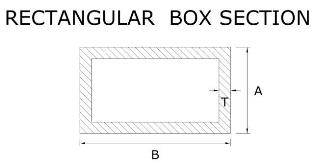

| Hot Rolled RHS B(mm) x A(mm) x T(mm) |
| 50 x 25 x 2.0 |
| 50 x 25 x 3.0 |
| 50 x 30 x 3.0 |
| 50 x 30 x 4.0 |
| 60 x 30 x 3.0 |
| 60 x 40 x 3.0 |
| 60 x 40 x 4.0 |
| 60 x 40 x 5.0 |
| 60 x 40 x 6.0 |
| 70 x 40 x 4.0 |
| 75 x 50 x 3.0 |
| 75 x 50 x 5.0 |
| 80 x 40 x 3.0 |
| 80 x 40 x 4.0 |
| 80 x 40 x 5.0 |
| 80 x 40 x 6.0 |
| 80 x 40 x 8.0 |
| 90 x 40 x 3.0 |
| 90 x 50 x 3.0 |
| 90 x 50 x 5.0 |
| 90 x 50 x 6.0 |
| 90 x 50 x 8.0 |
| 100 x 50 x 3.0 |
| 100 x 50 x 4.0 |
| 100 x 50 x 5.0 |
| 100 x 50 x 6.0 |
| 100 x 50 x 8.0 |
| 100 x 60 x 3.0 |
| 100 x 60 x 4.0 |
| 100 x 60 x 5.0 |
| 100 x 60 x 6.0 |
| 100 x 60 x 8.0 |
| 120 x 60 x 3.0 |
| 120 x 60 x 5.0 |
| 120 x 60 x 6.0 |
| 120 x 60 x 8.0 |
| 120 x 80 x 3.0 |
| 120 x 80 x 5.0 |
| 120 x 80 x 6.0 |
| 120 x 80 x 8.0 |
| 120 x 80 x 10.0 |
| 150 x 100 x 5.0 |
| 150 x 100 x 6.0 |
| 150 x 100 x 8.0 |
| 150 x 100 x 10.0 |
| 150 x 100 x 12.5 |
| 160 x 80 x 5.0 |
| 160 x 80 x 6.0 |
| 160 x 80 x 8.0 |
| 160 x 80 x 10.0 |
| 160 x 80 x 12.5 |
| 180 x 80 x 6.0 |
| 200 x 100 x 5.0 |
| 200 x 100 x 6.0 |
| 200 x 100 x 8.0 |
| 200 x 100 x 10.0 |
| 200 x 100 x 12.5 |
| 200 x 100 x 16.0 |
| 200 x 120 x 6.0 |
| 200 x 120 x 8.0 |
| 200 x 120 x 10.0 |
| 200 x 150 x 6.0 |
| 200 x 150 x 8.0 |
| 200 x 150 x 10.0 |
| 250 x 100 x 8.0 |
| 250 x 100 x 10.0 |
| 250 x 150 x 6.0 |
| 250 x 150 x 8.0 |
| 250 x 150 x 10.0 |
| 250 x 150 x 12.5 |
| 250 x 150 x 16.0 |
| Cold Formed ERW B x A x T |
| 1 1/2" x 3/4” x 1/16” |
| 2” x 1” x 1/16” |
| 20mm x 10mm x 1.5mm |
| 30mm x 10mm x 1.5mm |
| 30mm x 15mm x 1.5mm |
| 30mm x 20mm x 1.5mm |
| 30mm x 20mm x 2.0mm |
| 40mm x 20mm x 1.5mm |
| 40mm x 20mm x 2.0mm |
| 40mm x 25mm x 1.5mm |
| 50mm x 20mm x 1.5mm |
| 50mm x 20mm x 2.0mm |
| 50mm x 25mm x 1.5mm |
| 60mm x 20mm x 1.5mm |
| 60mm x 20mm x 2.0mm |
| 60mm x 30mm x 1.5mm |
| 60mm x 30mm x 2.0mm |
| 60mm x 40mm x 1.5mm |
| 75mm x 25mm x 1.5mm |
| 100mm x 40mm x 2.0mm |
